KZL type fast granulator
KZL type fast granulator
Online：
Phone：18851697216
Tel：025-85704510
- Characteristic
- Parameter
- Relevant

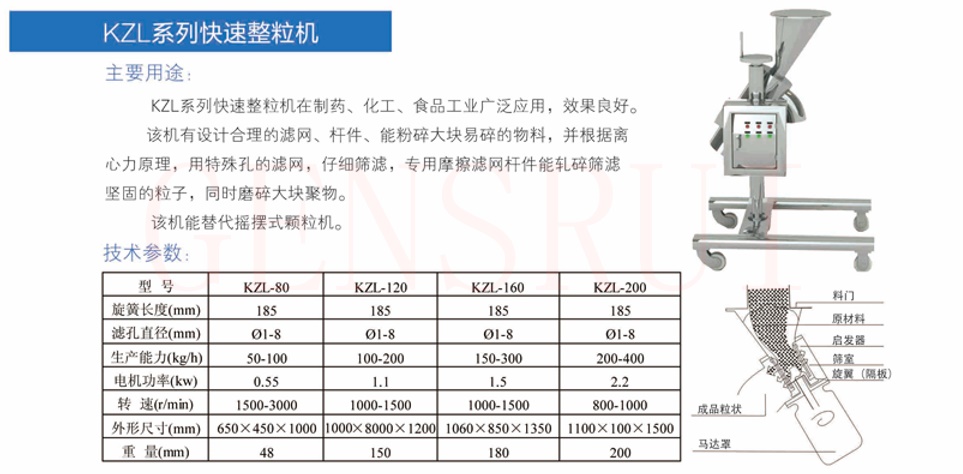

Main application: The KZL series rapid granulator is widely used in the pharmaceutical, chemical, and food industries with good results. This machine has a well-designed filter screen, rod, and can crush large and fragile materials. Based on the principle of centrifugal force, a special hole filter screen is used to carefully screen and grind solid particles while grinding large aggregates. This function can replace the swing pellet machine.
model throughput Length of rotary spring Filter hole diameter Motor power speed Dimensions (length x width x height) weight KZL-80 50-100kg/h 185mm ?1-8mm 0.55kw 1500-3000r/min 650*450*1000mm 48kg KZL-120 100-200kg/h 185mm ?1-8mm 1.1kw 1000-1500r/min 1000*8000*1200mm 150kg KZL-160 150-300kg/h 185mm ?1-8mm 1.5kw 1000-1500r/min 1060*850*1350mm 180kg KZL-200 200-400kg/h 185mm ?1-8mm 2.2kw 800-1000r/min 1100*100*1500mm 200kg
KZL type fast granulator
(DATE：24-10-24 VIEW：300)
Main application: The KZL series rapid granulator is widely used in the pharmaceutical, chemical, and food industries with good results. This machine has a well-designed filter screen, rod, and can crush large and fragile materials. Based on the principle of centrifugal force, a special hole filter screen is used to carefully screen and grind solid particles while grinding large aggregates. This function can replace the swing pellet machine.
